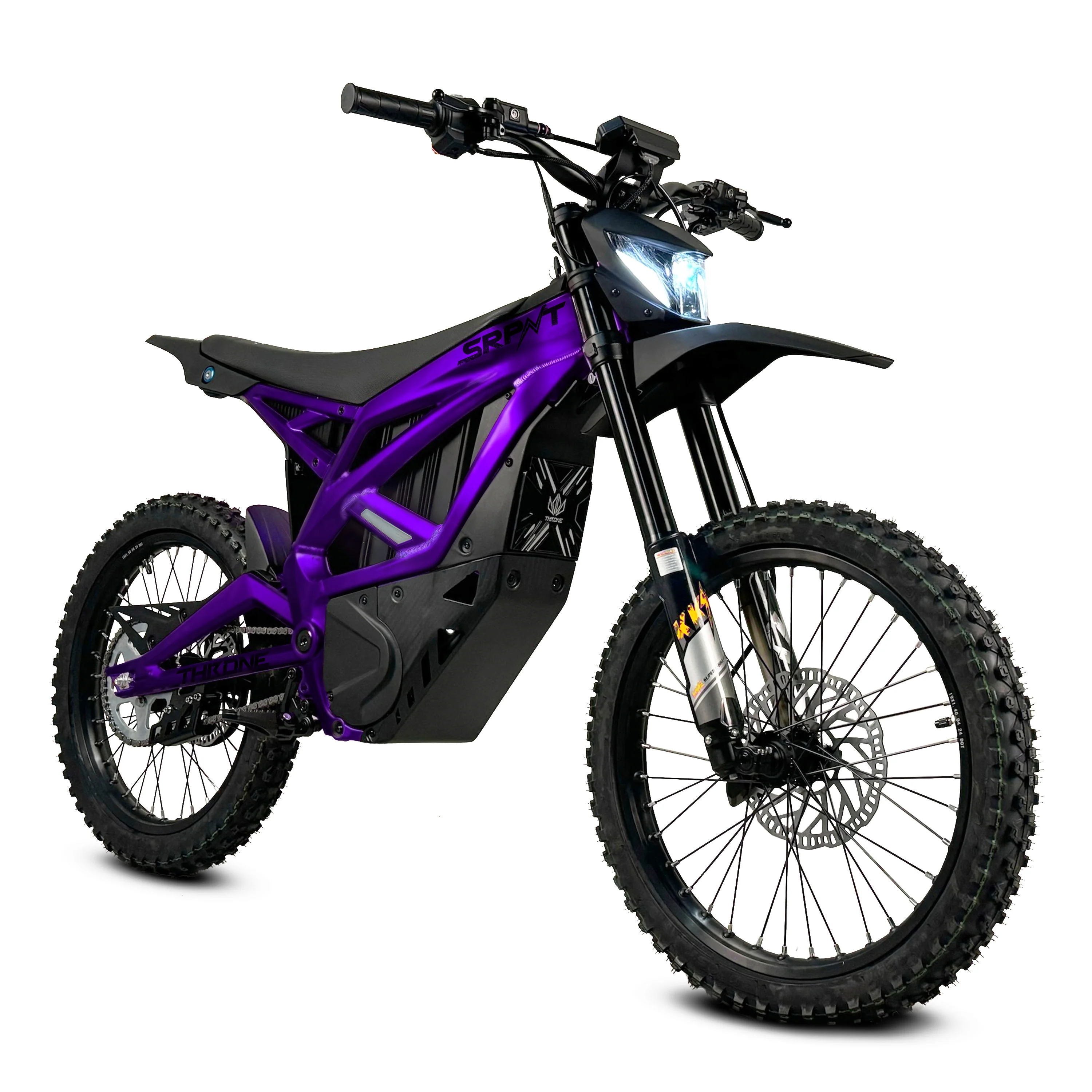

We’re beyond excited to introduce the new 13kW 72v Throne SRPNT -this machine redefines off-road performance.

Precision Engineered: Custom alloy frame, forged under 3,000 lbs. of pressure for ultimate strength.
Enhanced Braking: Now featuring DOT-approved high-performance brakes for superior stopping power.
Advanced Safety: Dual kill switches and strategically placed lights for maximum visibility.

⚠️ Please Note: This bike is built for off-road dominance and is not street-legal.

This is more than just an e-dirt bike—it’s a statement.

Please note that some assembly is required unless picked up from our showroom in Melbourne

Shipping is a flat rate of $300 with tracking

Pick available from our Melbourne Showroom

Torque E-Bikes | Get Finance Now!

**colours are for illustrative purposes only and may change slightly**

MOTOR
Motor Type:	PMSM
Mounting Position:	Mid
Weight / Motor External Diameter:	9.55kg / 155mm
Motor Axial Length:	130mm
Peak Efficiency:	98%
Cooling Method:	Air-Cooled
CONTROLLER
Controller Type:	FOC
Dimensions:	160mm x 142mm x 79mm
Peak Efficiency:	98.50%
Power Modes:	Eco, High, and Sport
MOTOR POWER SYSTEM
Rated Voltage:	72V (DC)
Rated Torque / Peak Torque:	95115Nm
Motor Shaft Output Torque @ 1000RPM:	460Nm
Rated Rotation Speed:	5400rpm
Peak Efficiency:	97%
Range of Efficiency (≥80):	3Nm - 45Nm
TRANSMISSION
Gear Ratio:	13:51
Transmission:	Motorcycle Chain & 428 Drive Chain
Model:	German Continental Brand, 8M CXA
ELECTRICAL COMPONENTS
Horn:	CQC
Battery:	72V 40AH Lithium Battery with 176 LG Cells
Battery Life Time:	500 Cycles
Battery Charge Level:	Integrated Battery LCD Display
Charger:	9A
Charging Time:	3.5 Hours
USB Connection:	Type C
Speedometer:	TFT
LED Headlight & Rear Light:	Yes

FRAME DETAILS
Chassis - Swing Arm Material:	No.6061 T4&T6 Aluminum
Chassis Construction Method:	Forged by 3000 Tons of Pressure
Chassis Surface & Color Processing:	Baked Paint
Front Suspension:	Inverted Suspension Fork with 200mm Travel
Rear Shock Absorber:	KKE Suspension Link System
Wheel Type & Size:	Front/Rear :1.4-19, 1.6-19 Alloy Hubs
DIMENSIONS
Ground Clearance:	270mm
Wheelbase:	1250mm
Seat Height:	85cm
Vehicle Dimensions:	1880mmX805x1130mm
DRIVE
Top Speed:	100km/h
Net Weight	73kg
Rear Sprocket	51T
Side Stand	Yes with Kill Switch
Battery Usage	600 Full battery cycles
